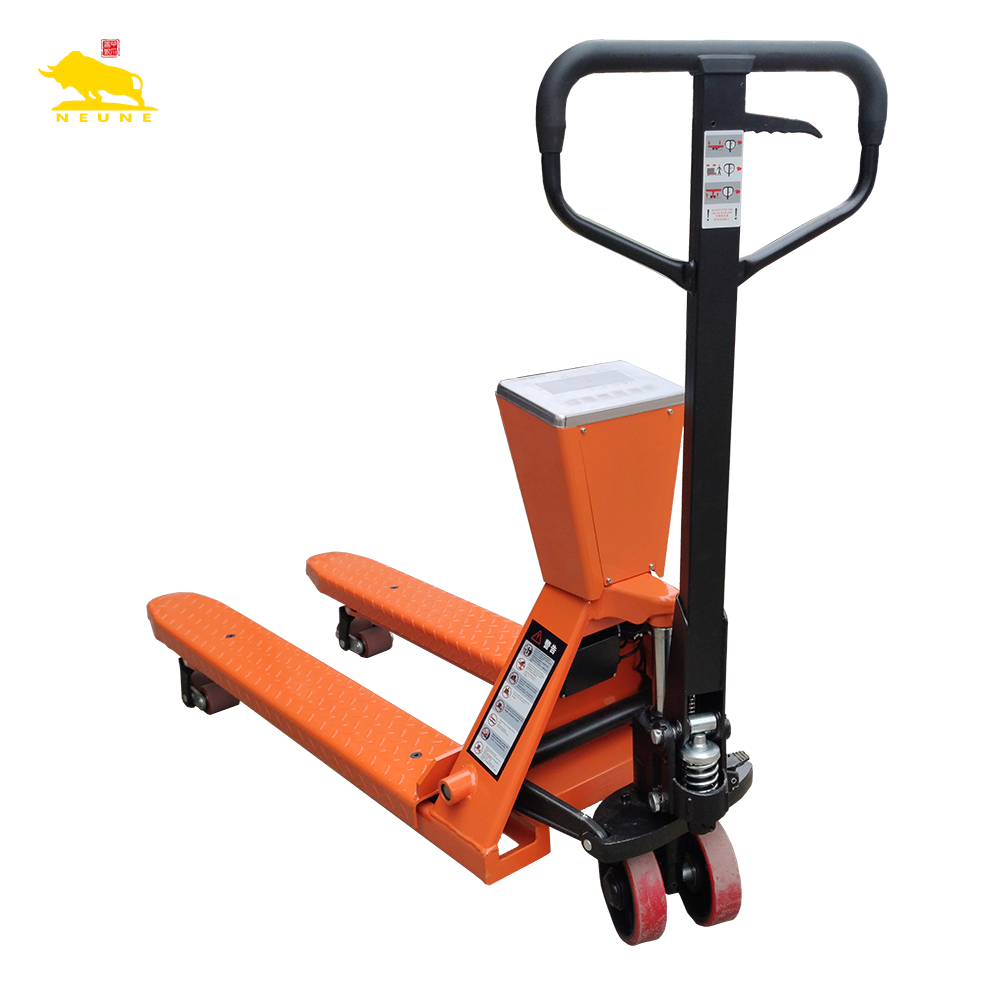

Integrated load sensors measure the goods while the hydraulic forks lift the pallet clear of the floor. The Weighing Pallet Truck presents the result through a protected digital indicator positioned for easy operator viewing. This combination is useful for incoming material checks, order batching, freight preparation, and internal inventory transfers. A compact turning profile supports movement through warehouse aisles, while durable steering and load wheels handle repeated use. We can match capacity, fork size, display functions, weighing accuracy, battery type, and wheel material to different operating requirements.
| Model | CBY-CW |
| Capacity (kg) | 2000/2500/3000 |
| Max. height (mm) | 195 |
| Min. height (mm) | 85 |
| Fork length (mm) | 1150 |
| Steering wheel (mm) | 160×50 |
| Width overall forks (mm) | 550/685 |
1. 2500kg Rated Capacity for Warehouse Loads
The 2500kg load rating covers many daily warehouse goods, including cartons, packed products, raw materials, finished stock and export pallets. The 65mm lowered fork height helps the truck enter standard pallets, while the 175mm total lift height gives enough clearance for floor-level pallet movement. The 550mm and 685mm fork widths help match different pallet structures used in warehouses and logistics operations.
2. Digital Weighing for Clear Weight Control
The weighing system controls error within ±0.1%, giving operators a practical weight reading during pallet handling. The HD backlit display supports tare, zero reset and kg/lb switching, so teams can deduct pallet weight, restart the reading when needed, and work with different unit requirements for domestic or export orders.
3. Less Double Handling in Busy Warehouses
A Weighing Pallet Truck reduces the extra movement between pallet handling and weighing. Workers can receive goods, check weight and move the pallet forward without waiting for a fixed scale. This is especially helpful when several pallets arrive at once and the receiving area needs to stay clear.
4. Manual Hydraulic Handling with Lower Daily Complexity
The truck keeps the familiar manual hydraulic operation of a hand pallet truck. Workers use the handle to lift and move goods, while the scale system supplies the weight reading. The handling function does not rely on external drive power, which keeps daily use simpler than powered weighing equipment.
1. Goods Receiving and Supplier Checking
Weighing Pallet Truck can be used when supplier goods arrive at the warehouse. Staff can check pallet weight before storage, helping identify shortages, overpacked goods or delivery note differences earlier in the receiving process.
2. Shipping and Freight Preparation
Before goods leave the warehouse, the truck helps confirm pallet weight for freight documents, shipment labels and loading arrangements. This is useful for exporters, logistics companies and distributors that need better control over outbound weight records.
3. Factory Finished Goods Transfer
Factories can use the truck when finished goods move from production to storage or packing areas. The team can check pallet weight during transfer instead of adding a separate weighing step after production.
4. Inventory Review and Stock Control
For products packed in standard cartons, bags or containers, pallet weight can help support stock checking. Warehouse teams can use weight as a quick reference during inventory review, especially when opening every carton is not efficient.
5. Wholesale and Distribution Sorting
Wholesale warehouses often handle mixed pallet loads from different suppliers or customer orders. A Weighing Pallet Truck helps workers confirm weight during sorting, repacking and dispatch preparation.
Tare is important when the warehouse needs net goods weight instead of total pallet weight. Workers can deduct the weight of pallets, crates or containers and record a cleaner weight figure for goods handling.
Zero reset helps operators start from a clean reading, while kg/lb switching is useful for companies dealing with both local and overseas customers. These functions make the truck more practical for export warehouses and logistics teams that handle different documentation habits.
The weighing system runs on a rechargeable lithium battery, and one full charge can support about 3–6 months of use depending on frequency. Because only the weighing system needs power, daily operation remains simpler than a fully electric truck.
Maintenance should cover both the pallet truck and the scale system. Wheels, forks, hydraulic lifting, lowering control, display, keypad, wiring and sensor areas should be checked regularly. Pallets should not be dropped heavily onto the forks, because impact can affect both weighing accuracy and truck structure.
For current pricing on Weighing Pallet Truck, contact us with your pallet size, usual load weight, weighing accuracy requirement, display unit, order quantity and delivery destination. We will match the configuration to your warehouse workflow and provide a quotation for sample orders, bulk purchasing or distributor supply.
