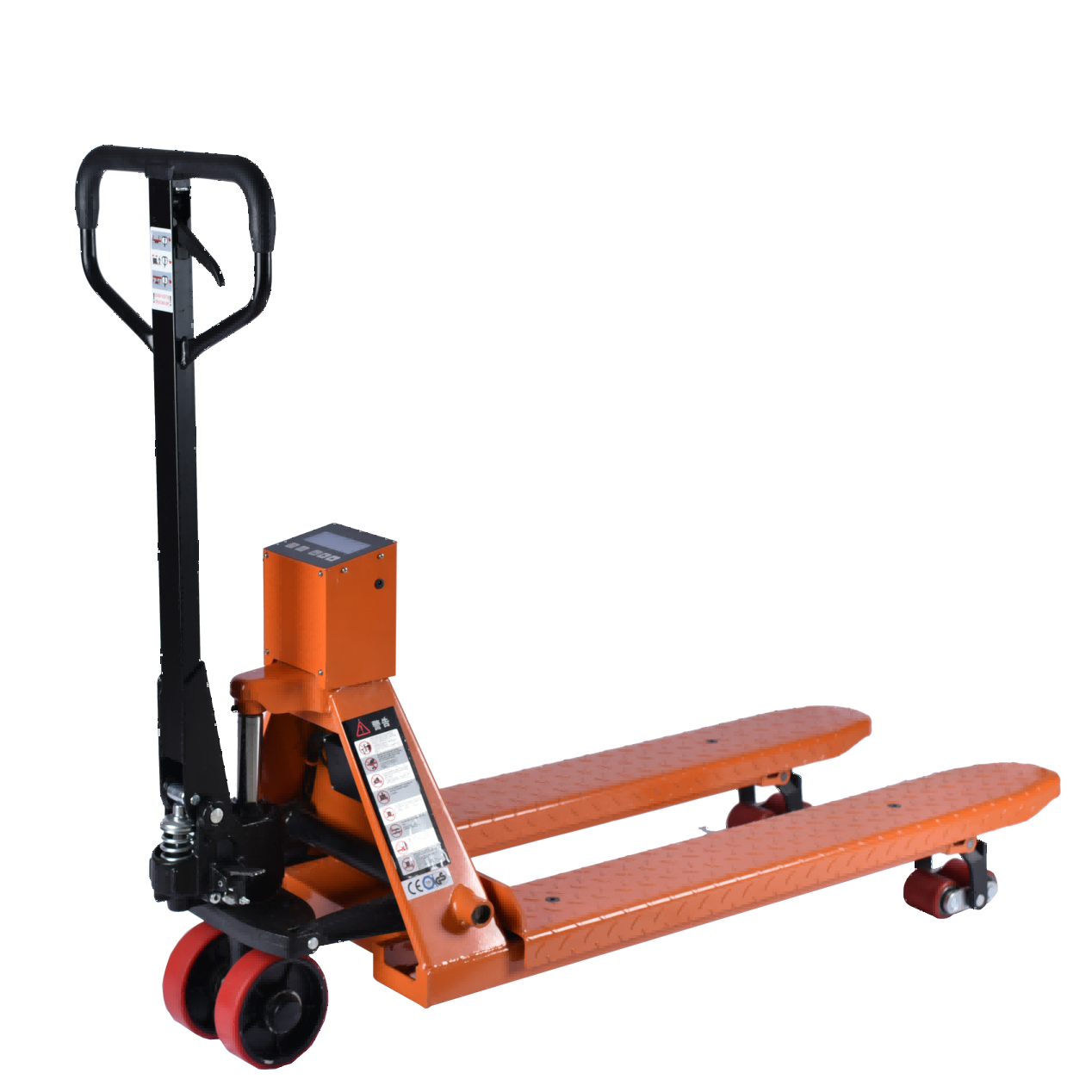

Weight data is captured while the pallet rests on the forks, allowing the Weighing Scale Pallet Truck to replace separate transport and weighing steps. Load sensors transfer readings to the mounted indicator, while the hydraulic pump raises goods for controlled movement across loading areas and production floors. Its compact steering structure helps operators work around packed storage zones and dispatch stations. We can match fork dimensions, rated capacity, wheel material, display configuration, and weighing precision to the intended workflow.
| Model | CBY-CW I |
| Capacity (kg) | 2500 |
| Max. height (mm) | 195 |
| Min. height (mm) | 85 |
| Fork length (mm) | 1150 |
| Steering wheel (mm) | 160×50 |
| Width overall forks (mm) | 550/685 |
| Self weight (kg) | 105 |
1 、High Accuracy Weighing
The Weighing Scale Pallet Truck uses integrated load cells installed inside the forks, delivering measurement accuracy typically within ±0.1% of full scale. This precision ensures reliable weight data during movement, helping operators maintain consistent measurement results even in uneven floor conditions.
2 、Strong Load Capacity
Standard load capacity reaches around 2000 kg, allowing the equipment to handle most palletized goods without affecting weighing performance. This capacity ensures stable lifting and accurate measurement at the same time, supporting repeated use in demanding handling environments.
3 、Clear Digital Display
The integrated display system shows real-time weight data with readability typically around 1 kg or finer. The display is designed for easy viewing during operation, helping operators check load values quickly without interrupting the transport process.
4 、Integrated Weighing System
The weighing system is built directly into the Pallet Truck structure, combining transport and measurement functions. This design allows goods to be weighed during movement, reducing extra handling steps and improving operational efficiency in daily logistics tasks.
5 、Durable Structure Design
The steel frame and reinforced forks support long-term use under frequent handling conditions. Combined with IP65 protection for the indicator and IP67 for weighing components, the truck maintains performance even in dusty or slightly wet environments.
1 、Warehouse Receiving
The weighing scale pallet truck is used to check the weight of incoming pallet goods during receiving operations. It helps staff verify shipment accuracy directly at unloading points, improving efficiency and reducing the need for separate weighing stations.
2 、Logistics Sorting
In sorting centers, the equipment allows operators to confirm pallet weight during movement. This supports faster sorting processes by combining transport and weight verification in one step, reducing delays in workflow.
3 、Production Material Control
Manufacturing facilities use the weighing scale pallet truck to monitor material weight during internal transfer. It helps maintain better control of raw materials and semi-finished goods during different production stages.
4 、Shipping Verification
Before dispatch, the truck helps verify pallet weight to ensure it meets transport requirements. This reduces errors in shipping data and improves consistency in delivery preparation processes.
5 、Inventory Checking
During inventory counting, the equipment allows quick weight measurement of pallet goods. It supports more efficient stock checking without moving goods to a fixed scale, improving overall warehouse productivity.
The display should be easy to read in normal warehouse lighting, and the backlit screen helps operators check weight more clearly during routine work. Tare and zero reset are important because pallets, crates and containers often need to be deducted before recording net goods weight.
The weighing system uses a rechargeable lithium battery, and one full charge can last 3–6 months depending on use frequency. The truck still moves manually, so battery power is only needed for the weighing system, not for driving the pallet truck.
A normal pallet truck is enough when the job is only moving goods. Weighing Scale Pallet Truck is more suitable when weight affects receiving, freight cost, dispatch documents, stock checking or quality control.
For buyers, the question is simple: does the pallet need to be weighed often? If yes, a scale pallet truck can save handling steps. If weight checking is rare, a standard pallet truck may still be enough for basic movement.
Looking for a Weighing Scale Pallet Truck for warehouse receiving, dispatch weighing, inventory checking or logistics handling? Contact us with your required load capacity, pallet size, weighing accuracy needs, display unit, quantity and delivery destination. Our team will review your application and provide a suitable quotation for sample orders, bulk purchasing or distributor supply.
