Electric Aerial Stock Order Picker

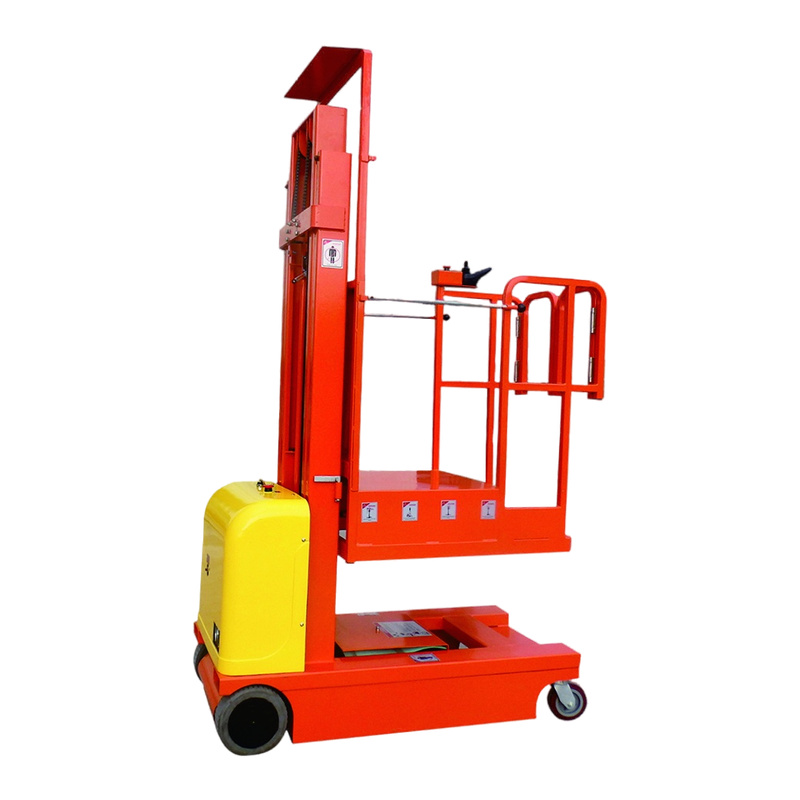

A vertical mast, guarded operator platform, mobile chassis, and battery-powered lifting system form the working structure of the Stock Order Picker. Available models support a 200 kg capacity with platform heights from 2700 to 4500 mm and working heights up to 6500 mm. An OEM/ODM Manufacturer can adjust platform dimensions, lifting range, wheel configuration, battery specifications, controls, and safety devices for narrow aisles or specialized shelving layouts.

1. Picking Height Range for Shelf Access

The platform height range covers 2m, 3m, 3.5m, 4m and 4.5m, with working heights from 4m to 6.5m. This range is practical for picking goods from medium and higher storage levels without climbing step ladders repeatedly. For warehouse managers, model selection should start from shelf height and picking frequency, not only from maximum lifting height.

2. Compact Width for Warehouse Aisles

With a 0.7m overall width and 1.53m overall length, Stock Order Picker can move through narrow stock areas where larger scissor lifts or forklifts may be difficult to use. The platform size is 0.95 × 0.64m or 0.9 × 0.64m depending on model, giving one operator enough standing space while keeping the machine compact for shelf-side picking.

3. Self-Propelled Picking Without Manual Pushing

The operator can complete lifting, forward movement, backward movement and steering from the platform. This is important for order picking because workers usually need to stop at many shelf positions during one route. Driving from the platform reduces repeated climbing down, repositioning and climbing back up.

4. 300kg Load Capacity for Operator and Picked Goods

The 300kg load capacity supports the operator together with cartons, tools or picked stock during shelf work. This makes the machine useful not only for reaching goods, but also for carrying selected items along the picking route before unloading them at a packing, sorting or staging point.

5. Battery and Fault Display for Daily Picking Work

The machine uses 2 × 12V / 120Ah batteries, a 24V / 15A integrated charger, 2 × 24V / 0.5kW drive motors and a 24VDC / 1.5kW lifting motor. Large-capacity traction batteries help extend working time, while circuit fault code display helps maintenance staff locate issues more easily during warehouse use.

1. E-Commerce Order Picking

Stock Order Picker is useful for e-commerce warehouses that handle many SKUs stored at different shelf levels. Workers can move along picking aisles, raise the platform near the required bin location, collect items and continue to the next order line.

2. Retail Backroom Stock Replenishment

Retailers and chain stores can use it to pick cartons, display stock and replenishment goods from upper storage levels. It is especially useful in backrooms where space is limited and forklifts are not practical.

3. Spare Parts Warehouses

Auto parts, machinery parts, electrical components and hardware warehouses often store small but varied items on shelves. A Stock Order Picker helps workers access upper levels while carrying selected parts safely on the platform.

4. Factory Material Stores

Factories can use the equipment for picking tools, parts, packaging supplies and production materials from storage shelves. It helps material staff prepare goods for workshops without using ladders or asking forklift operators for every picking task.

5. Inventory Counting and Shelf Checking

During stocktaking, barcode checking or shelf label updates, workers need to move slowly along storage rows and stop many times. A stock picker gives them an elevated working position and allows them to check higher shelf levels more efficiently.

Choosing the correct model depends on the highest shelf level that workers need to reach during normal operation. A 2m platform height may be enough for lower stock areas, while 4m or 4.5m platform height is more suitable for taller shelf systems.

The goal is not always to buy the tallest model. Taller models have different overall height and self weight, so buyers should compare shelf height, doorway clearance, floor condition, transport route and storage layout before deciding. A model that fits the aisle and reaches the common picking levels will usually perform better than an oversized unit.

Picking Load and Carton Handling

The 300kg capacity should be considered together with operator weight, tools and picked goods. If workers pick light cartons or small packaged items, the capacity gives enough room for normal order collection. For heavier goods, warehouses should control the amount carried on the platform and avoid stacking loose items in a way that affects balance or movement.

Stock Order Picker is better for shelf picking and light material access than for moving full pallets. Pallet movement should still be handled by pallet trucks, stackers or forklifts. Clear equipment separation helps warehouses avoid using the wrong machine for the wrong task.

Stock Order Picker Model Matching

Planning a Stock Order Picker purchase for warehouse picking, retail replenishment, parts storage or inventory checking? Share your shelf height, aisle width, typical item weight, picking route, floor condition and daily usage frequency. We can compare suitable GOPZ models and prepare a quotation for warehouse projects, dealer stock, rental use or batch purchasing.
