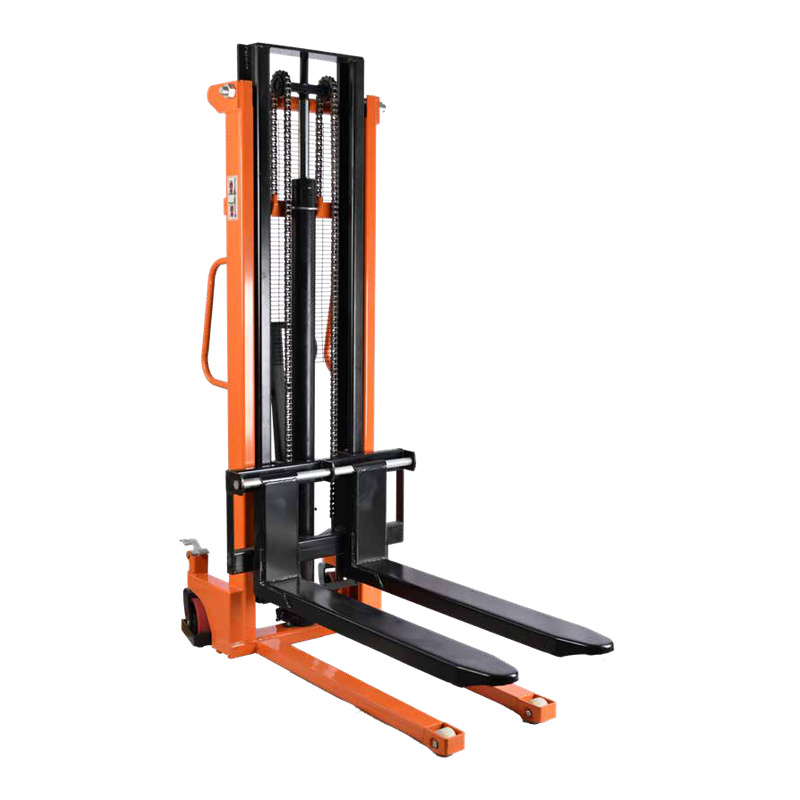

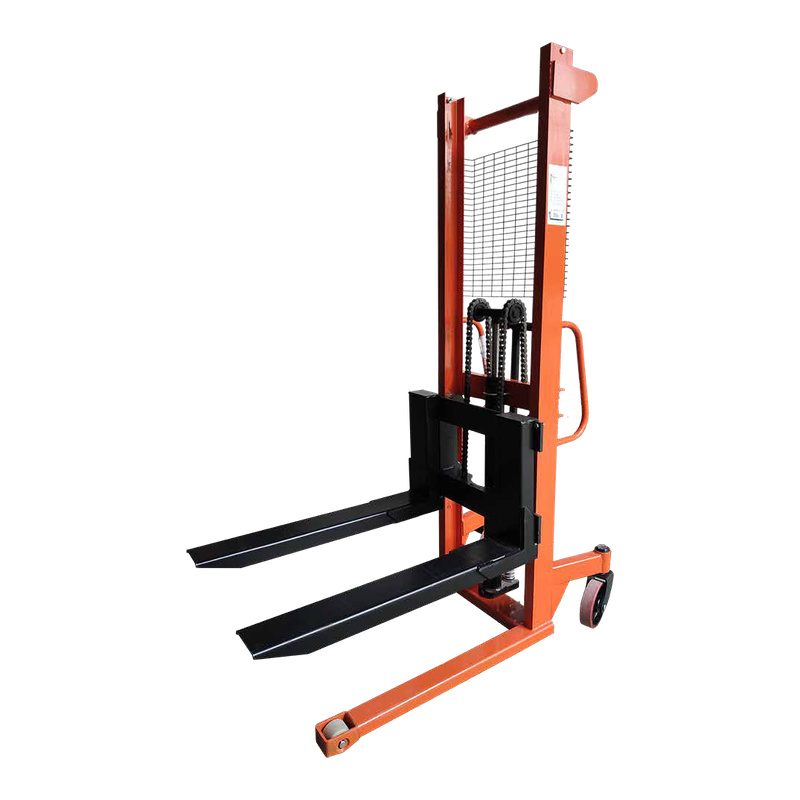

No charging schedule is required for the Manual Hydraulic Pallet Stacker, making it practical for facilities that need dependable lifting with simple daily upkeep. The hydraulic pump raises the forks smoothly, while the chain-supported mast maintains controlled vertical travel. Wide support legs improve stability around the load, and the adjustable fork spacing accommodates different pallet dimensions. Operators can use it for shelf replenishment, workstation feeding, pallet positioning, and short-distance stock transfer. We can configure the rated capacity, lifting height, fork length, frame width, and wheel arrangement for specific handling conditions.
| Model | CTY-A 0.5 | CTY-A 1.0 | CTY-A 1.5 | CTY-A 2.0 | CTY-A 3.0 |
| Capacity (kg) | 500 | 1000 | 1500 | 2000 | 3000 |
| Lower height of forks (mm) | 85 | 85 | 85 | 85 | 110 |
| Fork lift height (mm) | 1200 | 1600 | 1600 | 1600 | 1600 |
| Fork length (mm) | 750 | 900 | 900 | 900 | 1000 |
| Fork adjustable width (mm) | 180–396 | 210–560 | 250–580 | 250–580 | 290–580 |
| Gantry material | 8# Channel steel | 10# Channel steel | 12# Universal Beam | 14# Universal Beam | 16# Universal Beam |
| Fork material | 8# Channel steel | 10# Channel steel | 12# Channel steel | 12# Channel steel | 14# Channel steel |
| Lifting speed (mm/s) | 20 | 20 | 14 | 14 | 10 |
| Descent speed (mm/s) | Controllable | Controllable | Controllable | Controllable | Controllable |
| Width (mm) | 580 | 750 | 760 | 760 | 760 |
| Minimum refueling amount (L) | 1.2 | 1.6 | 2 | 2 | 3 |
| Front wheel size (mm) | φ85×50 | φ85×50 | φ85×50 | φ85×50 | φ100×50 |
| Rear wheel size (mm) | φ180×50 | φ180×50 | φ180×50 | φ180×50 | φ180×50 |
| Overall size (mm) | 1170×590×1655 | 1360×755×2040 | 1420×760×2050 | 1440×760×2050 | 1580×800×2070 |
1. Load Capacity and Lifting Height for Practical Stacking
The 1000kg version is suitable for cartons, packaged goods and lighter workshop materials, while the 2000kg version gives stronger support for heavier pallets and industrial stock. Both versions lift up to 1600mm, which is useful for low-level racking, truck-bed loading, pallet positioning and work-height material transfer. The 90mm lowered fork height helps the forks enter standard pallets before lifting.
2. Adjustable Fork Width for Different Pallet Sizes
The 1000kg model uses a 320–740mm adjustable fork width, while the 2000kg model uses a 360–740mm range. This helps the Manual Hydraulic Pallet Stacker match different pallet bases, box sizes and load widths in warehouses or factories. The 900mm fork length is better suited to compact pallet handling, short goods transfer and space-limited indoor work areas.
3. Manual Lifting Without Battery Management
This stacker works through manual hydraulic lifting, so there is no battery charging, motor inspection or charging area to manage. For small facilities or occasional stacking work, this keeps the equipment simple and ready to use when goods need to be lifted.
4. Controlled Lowering for Safer Placement
The lowering speed is controllable, helping operators place goods more carefully when moving pallets onto platforms, shelves or work areas. This matters when handling cartons, packed components or materials that need a slower and more stable lowering process.
5. Compact Structure for Smaller Work Areas
A Manual Hydraulic Pallet Stacker takes less space than many powered lifting machines. It can work in narrow indoor areas, small storage rooms and production corners where a forklift is too large or unnecessary.
1. Low-Level Pallet Stacking
Manual Hydraulic Pallet Stacker can raise goods onto low storage racks or stacking positions. It is useful for warehouses that need vertical lifting but do not need high-reach forklift equipment.
2. Production Line Material Supply
Factories can use it to lift raw materials, parts, cartons or packaging supplies closer to workstations. This helps operators place goods at a better height for production feeding or temporary storage.
3. Loading and Unloading Support
The 1600mm lift height makes the stacker useful around vehicle loading areas, platforms and dock-side handling. It can help raise pallets or packed goods to a more convenient height before transfer.
4. Small Warehouse Storage
For small warehouses and retail stockrooms, this stacker can handle goods lifting without taking too much floor space. It works well where pallet movement is occasional but lifting height is still needed.
5. Workshop and Maintenance Areas
Maintenance rooms, tool storage zones and workshop supply areas can use the stacker for lifting boxed tools, spare parts, machine components or packaged materials onto shelves and benches.
A hand pallet truck mainly moves goods close to the floor. Manual Hydraulic Pallet Stacker is different because it adds vertical lifting. It is the better fit when goods need to be placed onto a raised platform, low rack, table or vehicle bed.
For warehouses that only move pallets from one place to another, a standard pallet truck is enough. For workplaces that need both movement and lifting height, a manual stacker can reduce the need for repeated manual lifting or larger forklift equipment.
Operators should check the wheels, forks, hydraulic lifting response, lowering control and handle movement before use. The oil tank volume is 1.5L for the 1000kg version and 2L for the 2000kg version, so hydraulic condition should be part of regular maintenance planning.
Dust, pallet chips, plastic film and workshop debris should be removed from the wheel area. If lifting becomes weak, uneven or unable to hold height, the hydraulic system should be checked before the stacker is returned to daily use.
For pricing on Manual Hydraulic Pallet Stacker, send the load weight, pallet size, required lift height, working area condition and order quantity. We can help match the proper configuration for warehouse use, production handling, distributor stock or project purchasing.
