Pallet handling is controlled through a manual hydraulic lifting system, giving the operator steady movement when raising or lowering loads. The Hydraulic Pallet Stacker Forklift uses adjustable forks to accommodate different pallet widths, while the supporting legs help maintain balance during stacking. Its narrow chassis can approach shelving, loading points, and workstations more easily than larger equipment. The simple mechanical structure also reduces charging requirements and daily maintenance. Capacity, lift height, fork dimensions, wheel type, and frame width can be configured for different handling tasks.
| Model | CTY-E 1.0 | CTY-E 2.0 | CTY-E 1.0S | CTY-E 2.0S |
| Capacity (kg) | 1000 | 2000 | 1000 | 2000 |
| Lower height of forks (mm) | 90 | 90 | 90 | 90 |
| Fork lift height (mm) | 1600 | 1600 | 2000/2500/3000 | 2000/2500/3000 |
| Fork length (mm) | 900 | 900 | 900 | 900 |
| Fork adjustable width (mm) | 340–770 | 360–770 | 340–770 | 360–770 |
| Gantry material | Bending C-section steel | Bending C-section steel | Bending C-section steel | Bending C-section steel |
| Fork material | Bending C-section steel | Bending C-section steel | Bending C-section steel | Bending C-section steel |
| Lifting speed (mm/s) | 20 | 14 | 20 | 14 |
| Descent speed (mm/s) | Controllable | Controllable | Controllable | Controllable |
| Width (mm) | 690 | 690 | 690 | 690 |
| Minimum refueling amount (L) | 1.6 | 2 | 2/2.6/3.1 | 2.5/3.2/3.9 |
| Front wheel size (mm) | φ74×52 | φ74×70 | φ74×52 | φ74×70 |
| Rear wheel size (mm) | φ180×50 | φ180×50 | φ180×50 | φ180×50 |
| Overall size (mm) | 1390×780×2040 | 1390×780×2040 | 1410×780×1540 1410×780×1790 1410×780×2040 | 1410×780×1540 1410×780×1790 1410×780×2040 |
1. Load Capacity and 1600mm Lifting Height
The 1000kg version works well for cartons, packaging materials and lighter palletized goods, while the 2000kg version is better for heavier workshop stock or denser warehouse loads. Both versions lift to 1600mm, which makes this Hydraulic Pallet Stacker Forklift useful for low rack placement, truck-side handling and raised material positioning. The 90mm lowered fork height allows the forks to enter standard pallets before lifting.
2. Fork Width and Wheel Size for Indoor Handling
The 1000kg version uses a 320–750mm adjustable fork width, and the 2000kg version uses 340–750mm. This range gives warehouses room to handle different pallet bases and load widths without changing equipment. The front wheels measure Φ74 × 52mm, while the rear wheels measure Φ180 × 50mm, supporting indoor movement across flat warehouse and workshop floors.
3. C-Shaped Steel Frame for Pallet Stacking Work
The heavy-duty C-shaped steel construction gives the stacker a stronger frame profile for lifting and placing palletized goods. This structure is useful in warehouses where the equipment is used near racks, platforms and loading points rather than only for simple floor movement.

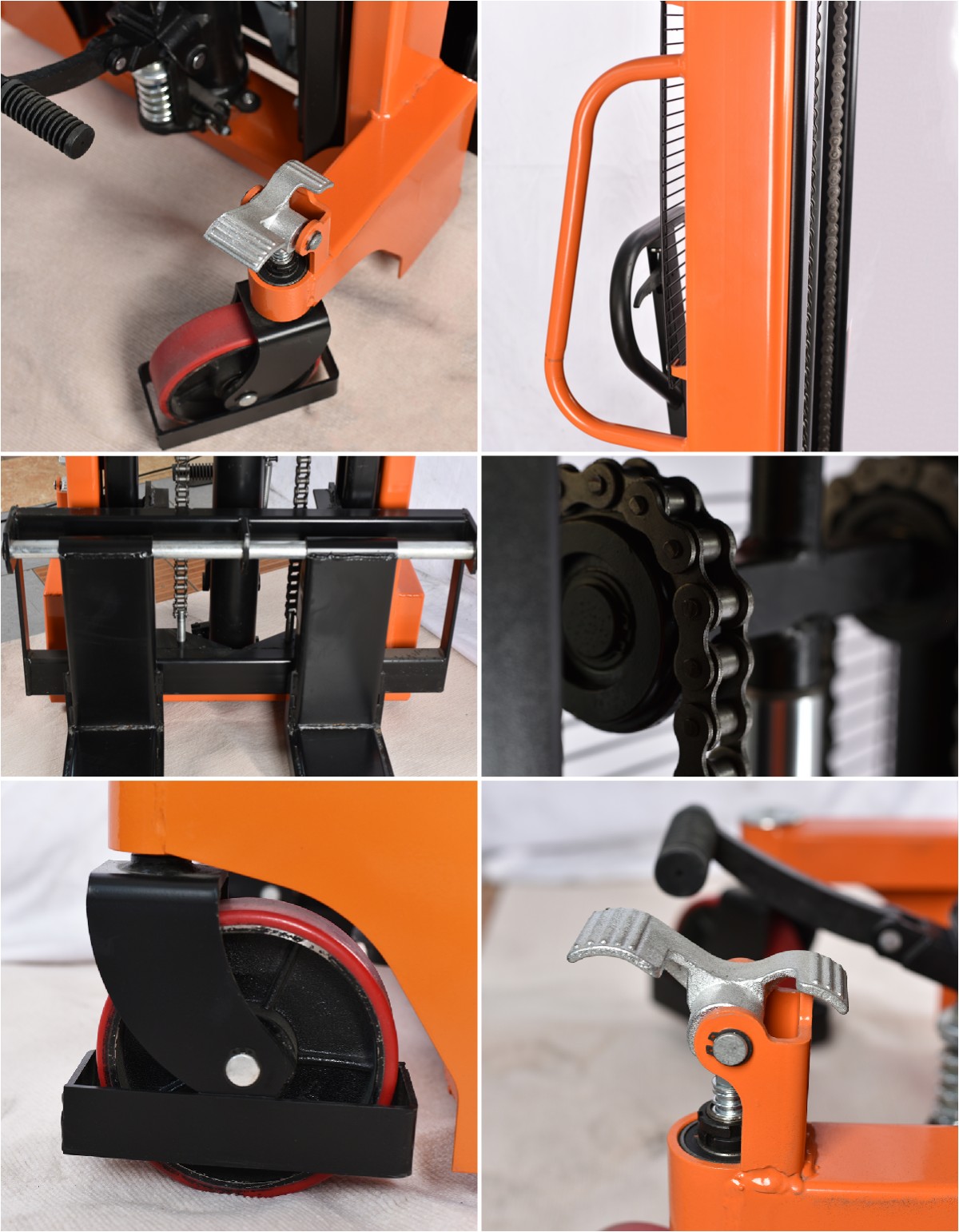

4. Side Brake for Placement Control
The side brake is practical when goods need to stay steady during loading, unloading or rack placement. When workers raise goods close to a shelf or platform, controlled stopping matters more than speed. This makes the Hydraulic Pallet Stacker Forklift more suitable for careful positioning work than a basic pallet truck.
5. Manual Operation for Smaller Warehouses
This stacker does not require battery charging, drive motors or charging station planning. For small warehouses, repair shops, packaging areas and stockrooms, the manual hydraulic structure keeps use straightforward and reduces equipment management work.
1. Low-Rack Stock Placement
Hydraulic Pallet Stacker Forklift is suitable for warehouses that store goods on low-level racks. Workers can raise pallets or loads to shelf height without using a larger forklift for every small stacking job.
2. Workshop Material Positioning
Factories can use the stacker to lift components, semi-finished goods, tooling boxes or packed materials near workstations. It helps move goods from floor level to a more usable working height.
3. Loading Platform Support
At loading platforms or dock areas, the stacker can help raise goods closer to the target height before transfer. It is useful for businesses handling lighter pallet loads without continuous forklift traffic.
4. Retail Stockroom Handling
Retail stockrooms and wholesale storage areas often have limited space. A manual stacker can lift goods onto shelves, pallets or temporary storage points without taking up as much room as powered equipment.
5. Warehouse Rack Arrangement
The product is especially useful for rack arrangement, loading and unloading work in warehouse environments. Hand push and hand lift operation makes it a cost-controlled choice for facilities that need occasional vertical lifting.
A Hydraulic Pallet Stacker Forklift should be selected around the actual shelf height, not only the load weight. The 1600mm lifting height is practical for low rack levels, platform transfer and raised storage points, but it is not intended for high warehouse racking.
Before placing an order, the warehouse team should confirm the rack height, pallet size, goods weight and shelf depth. If the goods need to be lifted higher than 1600mm, another stacker type may be more suitable. If the work is mainly low-rack placement, this manual hydraulic stacker is usually easier to manage than a forklift.
The hand-lift hydraulic system should raise smoothly and lower steadily. If the stacker becomes hard to pump, lowers unevenly or cannot hold height, the hydraulic system and seals should be checked before regular work continues.
Wheel areas also need cleaning because pallet chips, stretch film and workshop debris can affect movement. In warehouses where the stacker works near racks every day, checking forks, wheels, brake response and handle movement should become part of routine equipment care.
For a Hydraulic Pallet Stacker Forklift quotation, send your load weight, rack height, pallet size, fork width requirement, order quantity and destination. Our team can match the right stacker version and provide pricing for sample orders, warehouse projects, distributor stock or bulk purchasing.
