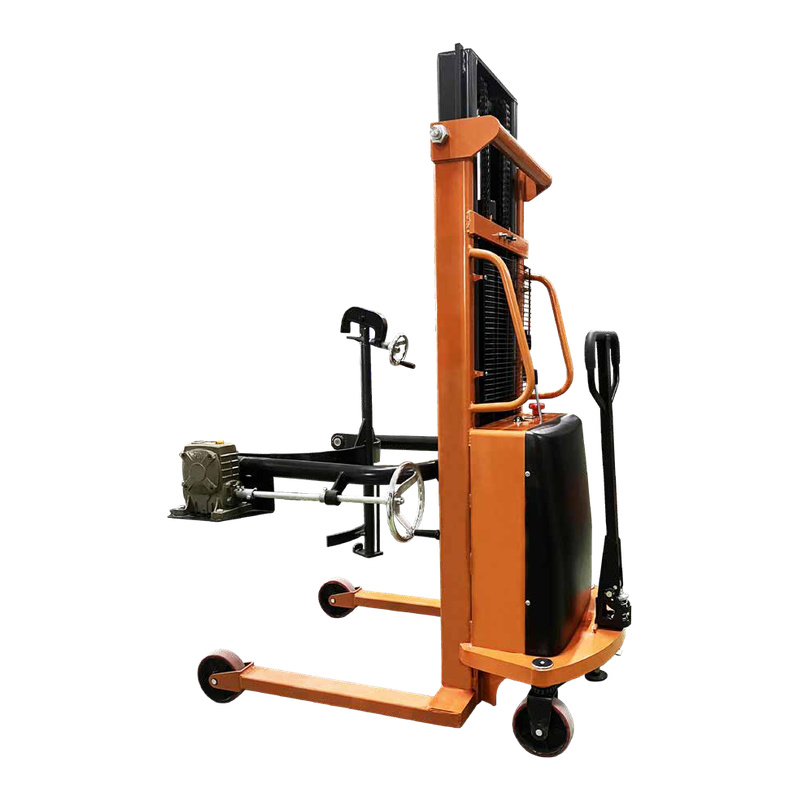

Where drums must be raised from floor level and placed beside equipment, the Drum Lifter Trolley provides a practical handling method. A gripping mechanism holds the drum during lifting, while the hydraulic system allows gradual elevation and controlled lowering. Mobile casters make short-distance positioning easier inside factories and warehouses. As an OEM / ODM Manufacturer, we can adjust lifting height, rated capacity, clamp design, wheel material, frame dimensions, and surface treatment for different drum specifications and operating conditions.
| Model | CDT 0.35 | |
| Load lifting Capacity (kg) | 350 | |
| Lifting height (mm) | 1600 | 2500 |
| Overall dimensions (mm) | 1190×890×2000 | |
| Self weight (kg) | 310 | 360 |
1. 350kg Capacity for Common Industrial Drums
A 350kg rated load fits many steel, plastic and fiber drums used in workshops, warehouses and liquid material storage areas. For buyers handling oil, lubricants, coatings or chemical materials, this load range is more practical than using a normal hand truck, because the trolley grips and lifts the drum instead of relying on workers to tilt or roll it manually.
2. 1400mm Lift Height for Pallet and Platform Work
The 1400mm lifting height allows the Drum Lifter Trolley to raise drums from floor level to pallet height, storage position or handling point. Its 1210 × 970 × 2050mm body size gives the machine enough reach and standing height for drum lifting while still keeping it suitable for indoor warehouse and factory routes.
3. Rim-Gripping Structure for Safer Drum Control
Drums are round, tall and harder to stabilize than cartons or palletized boxes. The rim-gripping structure helps hold the drum during lifting and movement, so workers do not need to pull the drum by hand or balance it while moving through the workshop.
4. Focused Equipment for Drum Handling Tasks
Drum Lifter Trolley is not a general pallet truck. Its value is in one specific job: lifting and moving barrels more safely. For facilities that handle drums every day, this focused design can reduce unsafe rolling, dragging and manual lifting during material preparation.
1. Oil and Lubricant Storage Rooms
Drum Lifter Trolley can help move oil drums from storage racks, pallets or floor positions to maintenance areas, dispensing points or workshop supply zones. This is useful for factories that use lubricants regularly in equipment maintenance.
2. Chemical Material Warehouses
Chemical warehouses often store drums in grouped pallet areas. A drum trolley helps workers lift and reposition individual barrels without moving the whole pallet, which is useful during batch picking, inspection or internal transfer.
3. Coating and Paint Workshops
Paint, coating and ink production areas often use barrel packaging for liquid materials. This trolley can help move drums closer to mixing areas, filling points or preparation stations before production starts.
4. Food Ingredient and Cleaning Supply Areas
Some food factories and cleaning product facilities handle liquid ingredients, additives or cleaning chemicals in drums. A Drum Lifter Trolley can support drum movement in storage and preparation areas where controlled handling is needed.
5. Factory Receiving and Repositioning
When drums arrive on pallets, workers may need to remove one barrel for checking, sampling or direct use. This equipment helps lift a single drum from the pallet and move it to another area without waiting for larger lifting equipment.
The clamp, hydraulic lifting parts, wheels and frame should be checked before regular use. If the drum does not lift smoothly, the hydraulic system should be inspected. If the trolley becomes hard to move, the wheel area may need cleaning or replacement parts.
Facilities handling oil or chemicals should also clean residue from the frame and clamp area. This helps prevent slipping, corrosion and buildup around moving parts, especially when the trolley is used in material storage rooms every day.
For equipment dealers, Drum Lifter Trolley should be separated from ordinary hand trucks and pallet trucks. It serves a clear customer group: factories, chemical warehouses, coating workshops, oil storage rooms and maintenance departments that handle drums regularly.
For facility buyers, the key details are drum weight, drum rim type, lifting height, aisle space and the route between storage and use point. These details decide whether a drum trolley will solve the actual handling problem or whether a different drum handler is needed.
For a Drum Lifter Trolley quotation, you can provide the drum material, drum size, maximum filled weight, lifting height needed and the number of units required. We will check the handling route and recommend a suitable configuration for factory use, dealer inventory or batch procurement.
