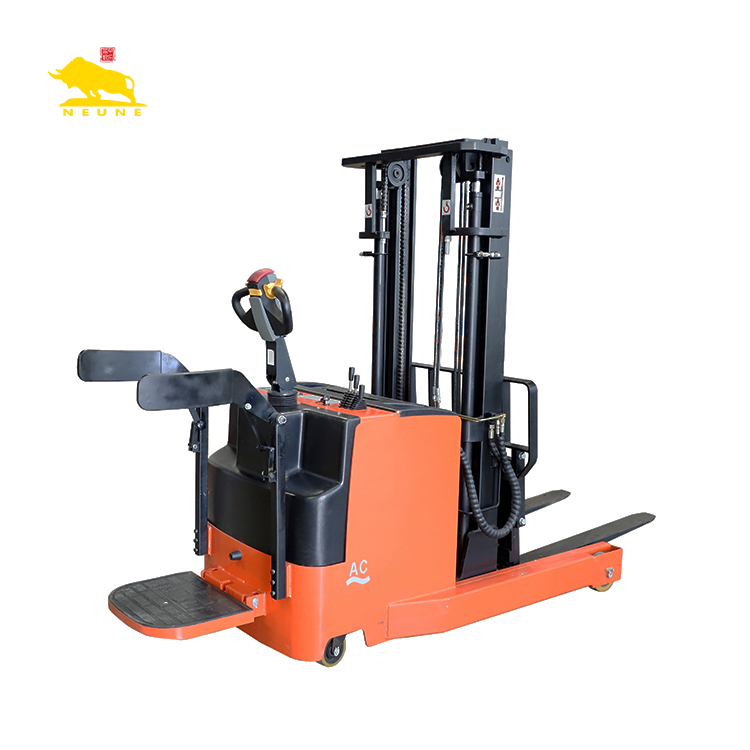

A reach-style mast allows the Electric Reach Stacker to approach racking closely while keeping the chassis compact during travel. Electric steering and lifting reduce operator effort across repeated shifts, while the stand-on platform supports frequent movement between storage zones. The forks can handle pallet transfer, rack replenishment, and order staging at different lift heights. A clear operating position improves visibility around the load and aisle. We can configure mast height, load capacity, fork dimensions, battery specification, control arrangement, and wheel material to match local pallet standards and warehouse conditions.
| Model | NRS 15-25 | NRS 15-30 | NRS 15-35 | NRS 15-40 | NRS 15-45 | ||
| Parameters | Drive unit | Electric | |||||
| Load Capacity | Kg | 1500 | |||||
| Load center | mm | 500 | |||||
| Brake way | Rebirth system moves + Electric at butterfly release | ||||||
| Wheels and tyres | Tyre type | Polyurethane | |||||
| Front tyre dimensions | mm | 180*55 | |||||
| Rear tyre dimensions | mm | 130x55 | |||||
| Traction wheel | mm | 230x75 | |||||
| Dimensions | wheel base | 460 | |||||
| wheel-base(Load wheel/Balance) | 1480 | ||||||
| Ground clearance (M2) | 45 | ||||||
| Reach distance (L3) | 590 | ||||||
| Travel position tiller height | mm | 1300 | |||||
| Lift height | mm | 2500 | 3000 | 3500 | 4000 | 4500 | |
| Closed height | mm | 1720 | 1970 | 2220 | 2470 | 2010 | |
| Forks clearance from the ground | mm | 35 | |||||
| Fork dimensions | S/L1/E | 920x100x35 | |||||
| Total length | mm | 2230 | |||||
| Total width | mm | 1050 | |||||
| Forks, adjustable | mm | 200-620 | |||||
| Minimum turning radius | mm | R1785 | |||||
| Minimum turning radius(Open pedal) | mm | R2160 | |||||
| Aisle width for pallets (1200x1000mm) | mm | 2730 | |||||
| Performance | Lifting speed(lade/unlade) | mm/s | 150/100 | ||||
| Lowering speed(lade/unlade) | mm/s | <500<> | |||||
| Traction speed(lade/unlade) | Km/h | 6/5 | |||||
| Maximum gradeability(lade/unlade) | % | 10/5 | |||||
| Weight | Truck weight (without battery) | 1880 | 1940 | 2000 | 2060 | 2150 | |
| Battery weight(±5%) | Kg | 240 | |||||
| Motors Battery | electrical engineering control system | AC-Speed Control | |||||
| Traction motor | KW | 1.5 | |||||
| Lift motor | KW | 3 | |||||
| Battery | V/Ah | 2Vx12/270 | |||||
| Battery Charger (Input) | ACV/HZ | 220V/50(60)HZ | |||||
| Battery Charger (Input) | DC V/A | 24V/40A | |||||
1. 1500kg Load Capacity With Reach Movement
Electric Reach Stacker is designed around a 1500kg rated load and 500mm load center, making it suitable for palletized warehouse goods, packed materials, cartons and stock transfer into rack positions. The 590mm reach distance helps the mast move the forks closer to the storage location, so operators can place pallets into racking more accurately without relying only on truck positioning.
2. Lift Height Range for Different Rack Levels
The NRS series includes lifting heights of 2500mm, 3000mm, 3500mm, 4000mm and 5500mm. Lower lift heights are useful for standard warehouse shelves and platform transfer, while the 5500mm model fits higher storage layouts where ordinary walkie stackers may not reach. The 920 × 100 × 35mm forks and 200–620mm adjustable fork range help match different pallet widths and storage goods.
3. Electric Travel and Electric Lifting
Unlike semi-electric stackers that rely on manual pushing, this reach stacker uses electric drive and electric lifting. The traction motor is 1.5kW, the lift motor is 3kW, and the battery system is 24V / 270Ah with a 24V / 40A charger. This structure is better suited for warehouses where goods are handled repeatedly across aisles, racks and staging areas.
4. Braking and Turning Control for Rack Aisles
Regenerative braking and electromagnetic braking help operators control the truck during pallet handling. The minimum turning radius is 1785mm, and 2160mm when the pedal is open, which is important for buyers planning aisle width, rack layout and turning zones before purchase.
5. Operator-Focused Control and Visibility
The smart control handle integrates acceleration, reversing safety, lowering control and power indication. The mast design provides a wider view for rack placement, while polyurethane wheels, Curtis controller and a practical drive layout help support daily warehouse use and maintenance.
1. Medium and High Rack Warehouses
Electric Reach Stacker is suitable for warehouses that store pallets on multi-level racks. The reach mast helps operators place goods into rack positions more carefully, especially when the pallet needs to move forward into the shelf rather than stop at the aisle edge.
2. Distribution Center Pallet Storage
Distribution centers can use this machine for pallet put-away, replenishment and stock transfer between receiving areas and rack storage. Electric travel and lifting make it more suitable for repeated daily handling than manual or semi-electric stackers.
3. Manufacturing Material Warehouses
Factories can use Electric Reach Stacker to store raw materials, components, packaging supplies and finished goods on warehouse racks. It helps production plants organize goods vertically and reduce floor-level pallet congestion.
4. Export and Logistics Warehouses
For export warehouses, goods often move between packing, inspection, temporary storage and loading areas. A reach stacker can help place pallets into organized storage positions before container loading or shipment arrangement.
5. Equipment Dealer and Project Supply
Material handling equipment dealers can position this product for customers who need more lift height, electric travel and rack placement control. It fits buyers upgrading from hand stackers or semi-electric stackers into a more warehouse-focused electric solution.
Lift height should be selected according to real rack beam height, pallet height and the clearance needed above the load. A warehouse using lower storage levels may not need the highest mast, while facilities with taller racks may need the 4000mm or 5500mm models.
Aisle space should be checked at the same time. The turning radius, pedal position, rack depth and pallet size all affect whether the truck can work smoothly inside the storage lane. Buyers should confirm layout drawings before placing a bulk order.
The adjustable fork range of 200–620mm allows the truck to match different pallet widths and goods bases. The fork tilt range of 2° forward and 4° backward also helps operators control pallet position during loading and unloading, especially when placing goods into rack openings.
For better use, pallets should be in good condition, evenly loaded and suitable for fork entry. Damaged pallets, loose cartons or off-center loads can make high-level placement less stable, even when the stacker itself has enough capacity.
Before arranging a quotation, let us know your rack height, aisle width, pallet size, average load weight and daily working frequency. We can help confirm whether the Electric Reach Stacker fits your warehouse layout, then prepare a quotation for sample checking, project purchasing or dealer stock planning.
