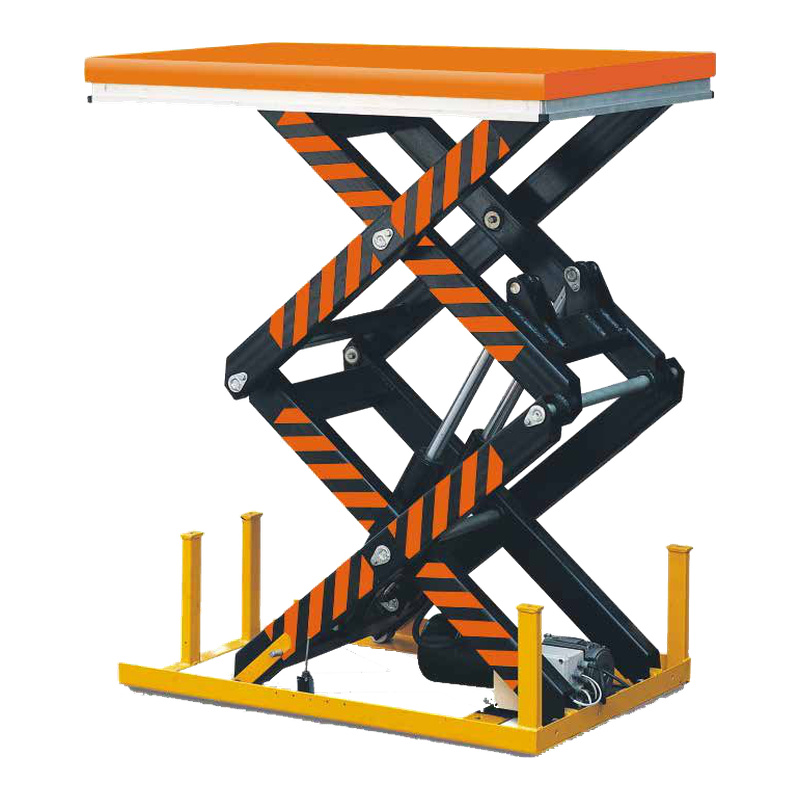

Industrial Cargo Double Scissor Lift Table

Greater lifting height can be achieved without increasing the platform footprint by using a Double Scissor Lift Table with vertically arranged scissor arms. The hydraulic system raises loads smoothly, while the reinforced frame keeps the platform stable during material positioning, packaging, inspection, and line feeding. Platform size, capacity, closed height, travel range, voltage, and control options can be configured by an OEM/ODM Manufacturer. This equipment is suitable for floor-mounted or pit-installed applications and can be integrated into Customized Material Handling systems.

1. Double-Scissor Structure for Higher Vertical Travel

The crossed two-layer arm structure is the key reason buyers choose a Double Scissor Lift Table. Compared with a single-scissor table used for lower height adjustment, the double-scissor layout can raise the platform through a larger vertical stroke while keeping the deck moving straight upward. This makes it more useful for dock height matching, mezzanine feeding, second-level storage transfer and cargo lifting where ordinary low-rise tables cannot reach.

2. Heavy-Duty Platform for Cargo Transfer

The platform works as a flat cargo surface, so pallets, crates, bins, components or machinery parts can be placed directly on the deck before lifting. Stationary hydraulic scissor lift models include platform sizes such as 2000 × 2000mm, 2500 × 2000mm, 4000 × 2000mm, 4500 × 2000mm and 6000 × 2200mm across different specifications, giving project buyers room to match platform size with real cargo dimensions.

3. Level Loading Between Different Heights

A Double Scissor Lift Table can create a level loading surface between ground level, vehicle beds, platforms or warehouse transfer points. This helps goods move across a flatter route instead of depending on steep concrete ramps, which can take up floor space and become less safe when wet.

4. Hydraulic Cylinders for Controlled Lifting

Hydraulic lifting keeps the platform movement steady during cargo elevation. Heavy-duty hydraulic cylinders are used to support vehicle-bed height service and high-capacity loading operations, while pushbutton control allows workers to raise and lower the platform with better control during dock or warehouse handling.

5. Safety Edges and Loading Protection

Cargo lift tables can include all-sided safety edges, deadman pushbutton control, safety support legs, safety roller curtains and portal rails. These details matter when forklifts, pallet trucks, workers and heavy goods operate around the platform during loading and unloading work.

1. Loading Dock Height Adjustment

Double Scissor Lift Table can help match different truck bed heights during loading and unloading. It is useful when vehicles arrive with different platform levels and the warehouse needs a safer cargo transfer surface.

2. Ground-to-Mezzanine Cargo Transfer

Warehouses with mezzanine storage can use the lift table to move goods between ground floor and upper storage levels. It works well for cartons, packed goods, tools, spare parts and palletized materials that need vertical movement inside the building.

3. Production Line Height Connection

Factories can use the table to bridge height differences between production lines, machines, inspection platforms and material staging areas. Goods can be lifted to the right transfer height before entering the next process.

4. Heavy Parts Assembly Support

Workshops handling machinery parts, metal components or tooling can use a fixed lift platform to bring heavy goods closer to the assembly height. This reduces repeated forklift adjustment and gives workers a more stable loading surface.

5. Warehouse Space Retrofit

For warehouses without a permanent dock, a Double Scissor Lift Table can help create a flexible height-adjustment point. It can reduce the need for long ramps and make better use of limited loading space.

A Double Scissor Lift Table may receive goods from one side and unload from another side, or work as a side-entry platform beside a dock or machine. Loading direction affects guardrail position, stop block design, safety edge placement and surrounding clearance.

When goods are moved by pallet truck, the deck surface and platform edge should make transfer as smooth as possible. When forklifts are used, the site should allow enough approach space so the operator can place cargo onto the platform without hitting rails, posts or control boxes.

Hydraulic Power and Control Position

The hydraulic power unit should be matched with the load, lifting height and working frequency. Stationary hydraulic scissor lift models use different motor powers across specifications, including 2.2kW, 3.7kW, 5.5kW and 7.5kW configurations.

Control position also affects daily use. A dock-side control box, wall-mounted control or remote operating point should be placed where workers can see the platform clearly during lifting and lowering. For cargo transfer, visibility is important because workers need to check load position, platform edge clearance and surrounding safety before movement.

Double Scissor Lift Table Project Quotation

For a Double Scissor Lift Table project, prepare the height difference, maximum cargo weight, platform size, loading direction, power supply and installation method. A simple site sketch or dock drawing will make model confirmation faster, especially when the lift needs to connect floor level with a truck bed, mezzanine or production platform. We can review the lifting layout and provide a quotation for warehouse loading, factory transfer, dock retrofit or customized cargo lift supply.
