During loading, sorting, or component handling, Scissor Lift Pallet Trucks can raise the pallet as the load height changes, reducing unnecessary bending and repeated manual repositioning. The scissor mechanism provides vertical elevation, while the hydraulic system offers controlled lifting and lowering. Support stabilizers improve balance at working height, and the forks remain suitable for short-distance pallet movement when lowered. We can configure capacity, maximum lift height, fork dimensions, wheel material, and operating method to match different pallet formats and workplace routines.

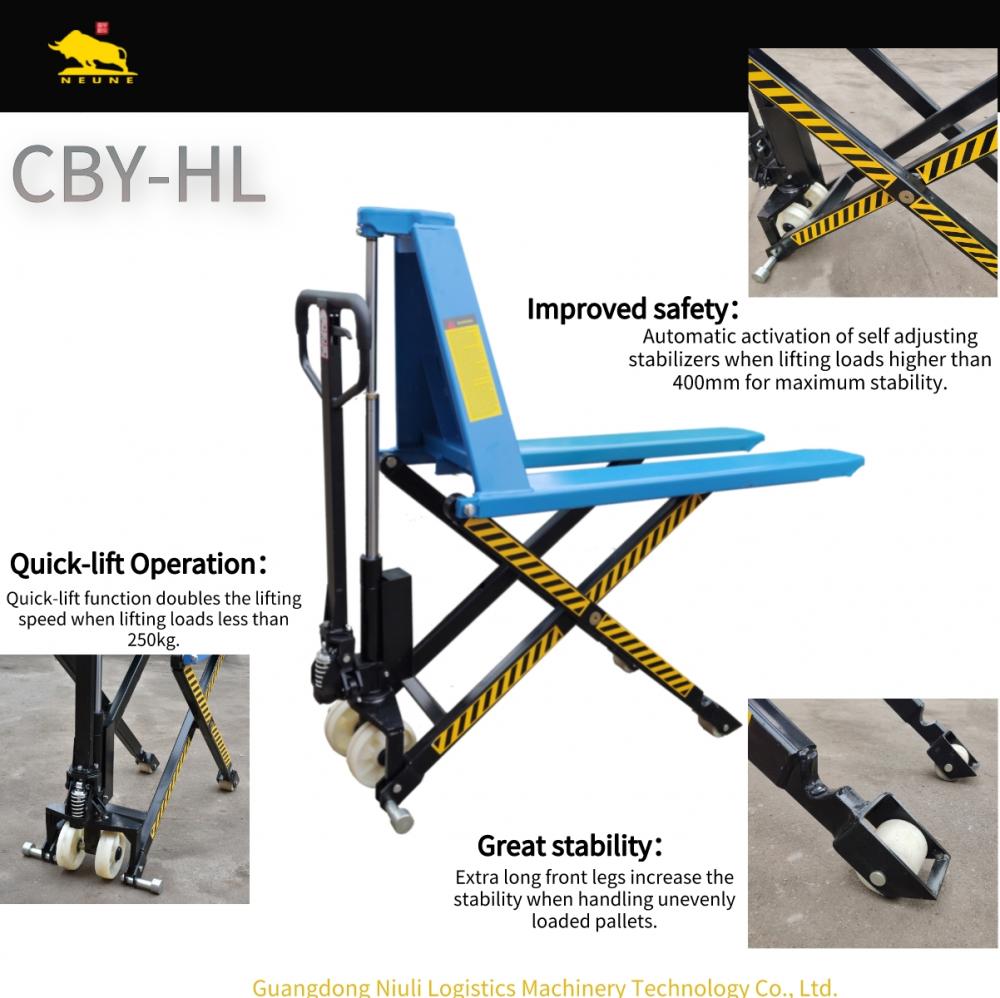

| Model | CBY-HL |
| Capacity (kg) | 1000/1500 |
| Width overall forks (mm) | 540/680 |
| Fork length (mm) | 1150 |
| Min. fork height (mm) | 85 |
| Max. fork height (mm) | 800 |
| Self Weight (kg) | 105-115 |
1. Practical Lifting Range for Workstation Use
The 85mm lowered fork height allows the truck to enter standard pallets before lifting, while the 800mm maximum fork height brings goods closer to a working table level. This makes Scissor Lift Pallet Trucks different from ordinary hand pallet trucks, because they are not only used for floor-level transport, but also for raised handling during packing, checking and assembly work.
2. Fork Size Matching for Different Pallet Layouts
The 1150mm fork length works well for many standard warehouse pallets, while the 1220mm length is better for longer pallet bases or markets where larger pallet sizes are commonly used. A 550mm overall fork width suits narrower pallet openings, and 685mm gives broader support for wider pallet structures. These size differences help match real warehouse pallets instead of forcing one configuration into every working environment.
3. Moving and Lifting in One Workflow
Scissor Lift Pallet Trucks help reduce extra material transfer between a pallet truck and a fixed lift table. Workers can move the pallet to the station, lift it to a more useful height, finish the task, lower the forks and move the goods away. This is practical for businesses that want to simplify workstation handling without adding too much equipment around the same area.
4. Better Access to Goods on Pallets
When goods stay close to the floor, workers need to bend repeatedly to pick cartons, parts or packed products. The scissor lifting structure brings the load closer to the operator, which is especially helpful in packing rooms, component feeding areas and inspection points where the same pallet is accessed many times.
1. Packing Line Operations
Scissor Lift Pallet Trucks can be used beside packing tables where products, cartons or packaging materials are taken from pallets throughout the day. Raising the pallet makes labeling, repacking and carton handling easier for workers.
2. Quality Inspection Areas
Incoming goods and finished products often need to be opened, counted or checked before storage or shipment. A raised pallet position helps inspection staff work more comfortably without bending over low pallet stacks.
3. Assembly Line Material Feeding
Production teams can use Scissor Lift Pallet Trucks to bring parts, fittings, boxes or components close to workstations. The raised fork height helps operators pick materials more smoothly during repeated assembly tasks.
4. Printing and Paper Workshops
Paper stacks, printed sheets, cartons and packaging materials are often handled in batches. A scissor lift pallet truck can move these goods into position and raise them for sorting, feeding, checking or repacking.
5. Warehouse Order Preparation
For small-batch picking and mixed-carton preparation, this equipment helps workers handle goods directly from pallets. It works well in warehouse zones where movement distance is short, but hand access to the pallet is frequent.
A standard pallet truck mainly solves one job: move a pallet from one place to another. Scissor Lift Pallet Trucks solve a different problem. They are chosen when the pallet becomes part of the working station after movement.
This matters in packing, inspection and production feeding. The value is not only transport speed, but how easily workers can reach the goods after the pallet arrives.
Loads should sit evenly on the forks before lifting. If cartons lean to one side or the pallet base is damaged, the load may become unstable when raised. Workers should avoid sudden movement, sharp turning or moving the truck while the forks are lifted high.
A flat and clean floor is also important. Scissor Lift Pallet Trucks are best used on smooth indoor floors where operators can control movement safely and keep the load balanced during handling.
Need Scissor Lift Pallet Trucks for packing lines, inspection areas, production feeding or warehouse workstation use? Send your pallet size, load weight, fork requirement, working height needs and order quantity, and the team can help prepare a suitable solution for quotation, sample checking or bulk supply.
